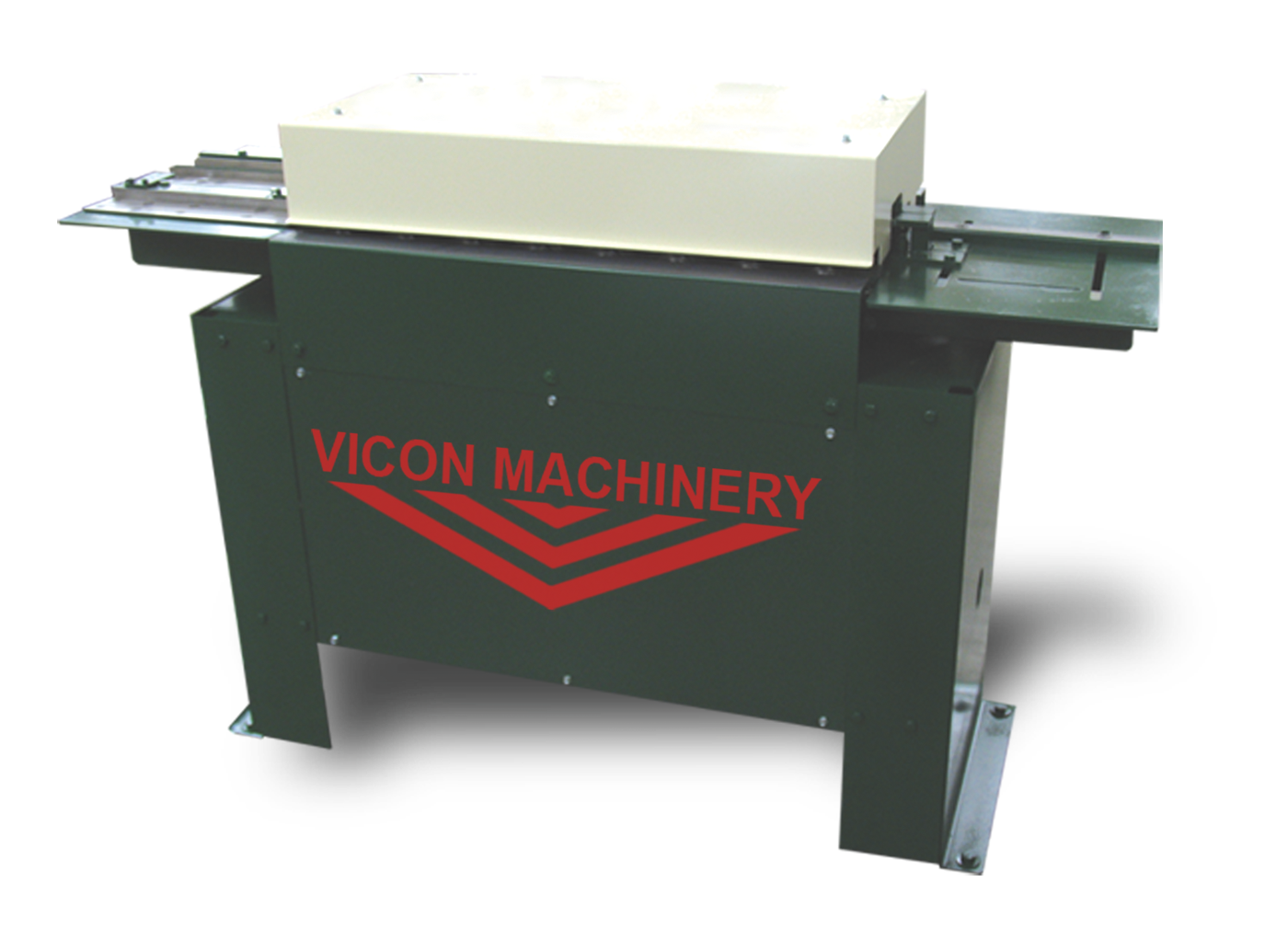

V8 Pittsburgh Rollformer
Eight Station Rollforming Machine
| Model | Left Outboard (Female) | Speed |
|---|---|---|
| V8-P20 | Small Pittsburgh 20-28 Ga (5/16” pocket) 1” Notch | 90 FPM |
| V8-P18 | Large Pittsburgh 18-24 Ga (7/16” pocket) 1-3/8” Notch | 90 FPM |
| V8-P16 | Large Pittsburgh 16-20 Ga (7/16” pocket) 1-3/8” Notch | 45FPM |
 |
||
The V8 Pittsburgh Rollformer produces connections that exceed the standards set by SMACNA.
The V8 rollformer can be optionally tooled with either Right Angle Flange, 4-in-1 or Acme Lock Rolls.
Options
- Right Angle Flange Rolls
20-28 Ga. (1/4” - 7/16”)
16-24 Ga. (1/4” - 7/16”) - 4-in-1 Rolls (22 Ga. - 28 Ga.) to produce clinch, small standing seam, 7/16” flange, and male 1/4 edge
- Acme Lock (Double Seam) Rolls
(20 Ga.-28 Ga.) or (16 Ga.-22 Ga.) - 5 Gallon Sealant System for sealing Pittsburgh Lock (1 Gun)
- 5 HP Single Phase Motor (90 FPM)
- 3 HP Single Phase Motor (60 FPM)
(18 gauge and lighter) - Additional options available
Features & Benefits
- Quietest machine in the industry
- Eight forming stations for all roll sets - no opening roll on any roll set
- Large, heavy duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine
- Slide out shaft design allows for easy maintenance
- Heavy duty 1” diameter stress proof roller shafts
- Woodruff shaft keys for added strength and precise alignment
- 5 HP motor coupled to an industrial oil bath worm gear drive for longevity
- Heavy duty roller chain drive, no belts
- Heavy duty motor starter with thermal protection overloads
