Shear-n-Bend with Cleat Former
Automatic Rectangular Duct Blanking System
The Duct-Line Express Shear-n-Bend with Cleat Former is expandable to a Full Coil Line system at anytime. This practical solution includes an uncoiler (patented), feeder, straightener unit, beader, cleat forming head, notching unit, heavy duty shear and bending unit.
Vicon Coil Line software program for Windows®
ViSoft Software is menu-driven, user-friendly and can be set to SMACNA standards or customized to your shop standards. Continually updated and supported by Vicon's experienced team of programming engineers, ViSoft ensures enhanced productivity and superb part accuracy.
Features & Benefits
- Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed.
- Robust, gear-driven four (4) roll straightener with 4" diameter rolls.
- Ring type beading with SMACNA spacing.
- Heavy duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns.
- Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy duty torsion synchronization shaft insures proper shear angle throughout the stroke.
- Integrated rollforming produces hems or flanges on the edge of the material.
- Rugged bending unit to form the male Pittsburgh edge as well as either an L-section, U-section, or full wrap duct.
- Vicon PC based control system capable of controlling a complete system.
- Hands-free coil feed
Options
- 72" coil width
- Precision, high speed servo system
- Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACNA standards (or your own standards).
- Male button punch system for Snaplock male edge.
- Economical overfed coil cradle systems for smaller overall footprint.

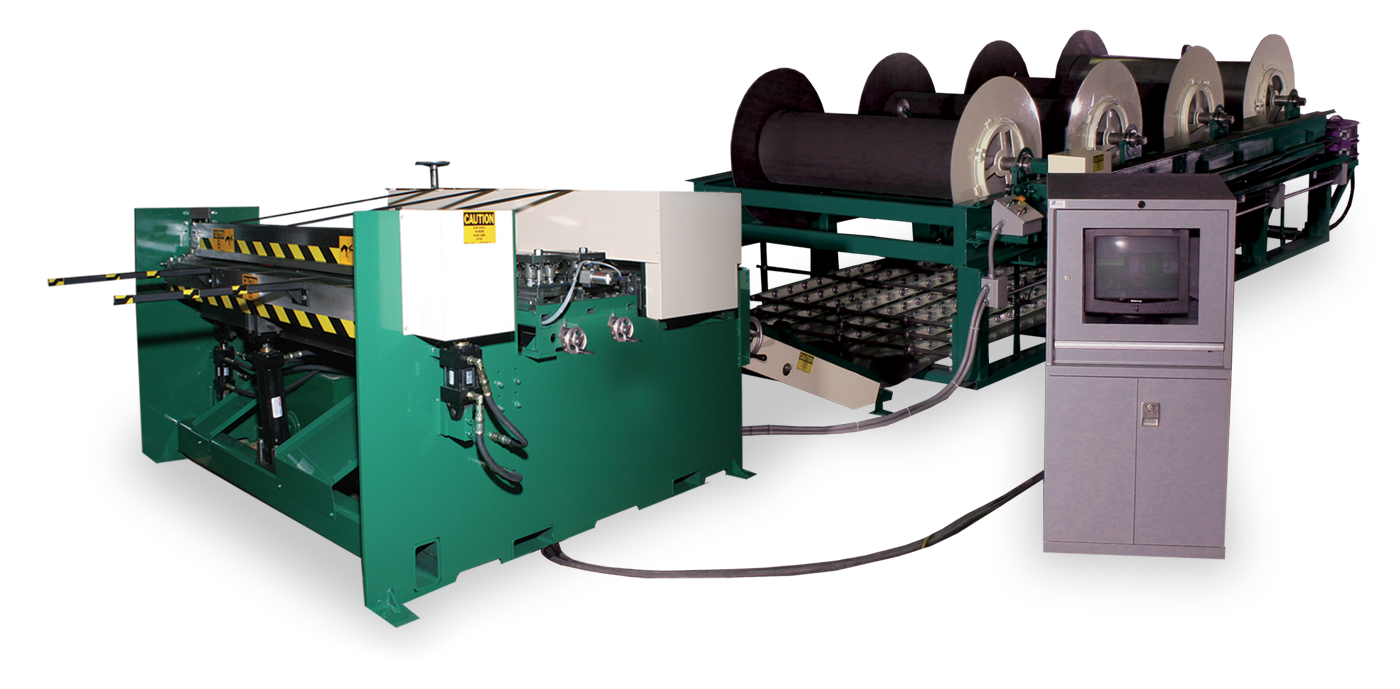

Shear-n-Bend w/ Cleat Former
Loading a coil spool
Specifications
- 16-30 Gauge mild steel capacity
- 12,000 lbs maximum coil capacity (with coil drive)
- Coil widths from 48" - 60" standard
- Up to six coil stations available
- Quick-change coil spools (patented)
- Hydraulic coil drive
- Powered in-feed guide ramp with hand wheel for change in coil widths
- Approximately 70 FPM line speed
Shear-n-Bend Former Justification Calculator
Click on the calculator to the left to view how quickly the Shear-n-Bend pays for itself and starts making a profit.
Click on the calculator to the left to view how quickly the Shear-n-Bend pays for itself and starts making a profit.
Available HVAC Software
Click on the screenshot to the left to view available software for the HVAC line of machinery.
Click on the screenshot to the left to view available software for the HVAC line of machinery.
